Side by Side Tote Dollies

Made with the same heavy duty construction as our regular Tote Dollies, these Side by Side units have a wide stance and low center of gravity making them extremely stable.

All Knock-Down and 2 Tote models ship UPS.

All Tote Dollies are design to accommodate 16″ x 25″ x 8-1/2″ Totes. (Tote Not Included)

Dollies are equipped with 5″ swivel casters. (2 with brake and 2 without brake)

Knock-Down Models come with tool needed for assembly.

Options: FW = Fully Welded KD = Knock-Down

For Custom Made Sizes

Part Number	Tote Capacity	Material and Configuration	Overall Dimension Length X Width x Height	Approximate Shpg. Wt.

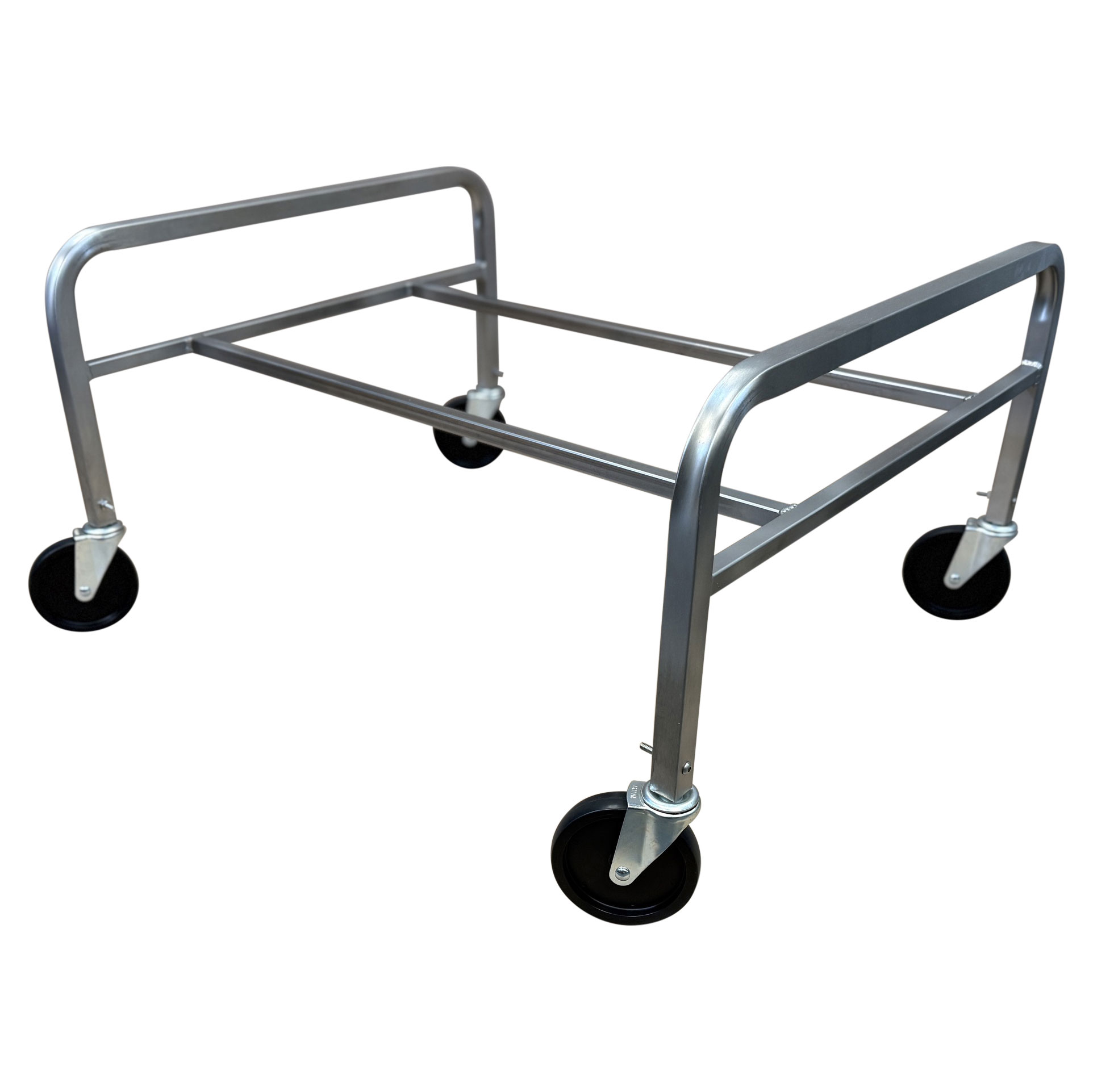

DL102042	2	Aluminum, FW	34″ x 24″ x 20″	14 lbs
DL101034	2	Stainless, FW	34″ x 24″ x 20″	17 lbs

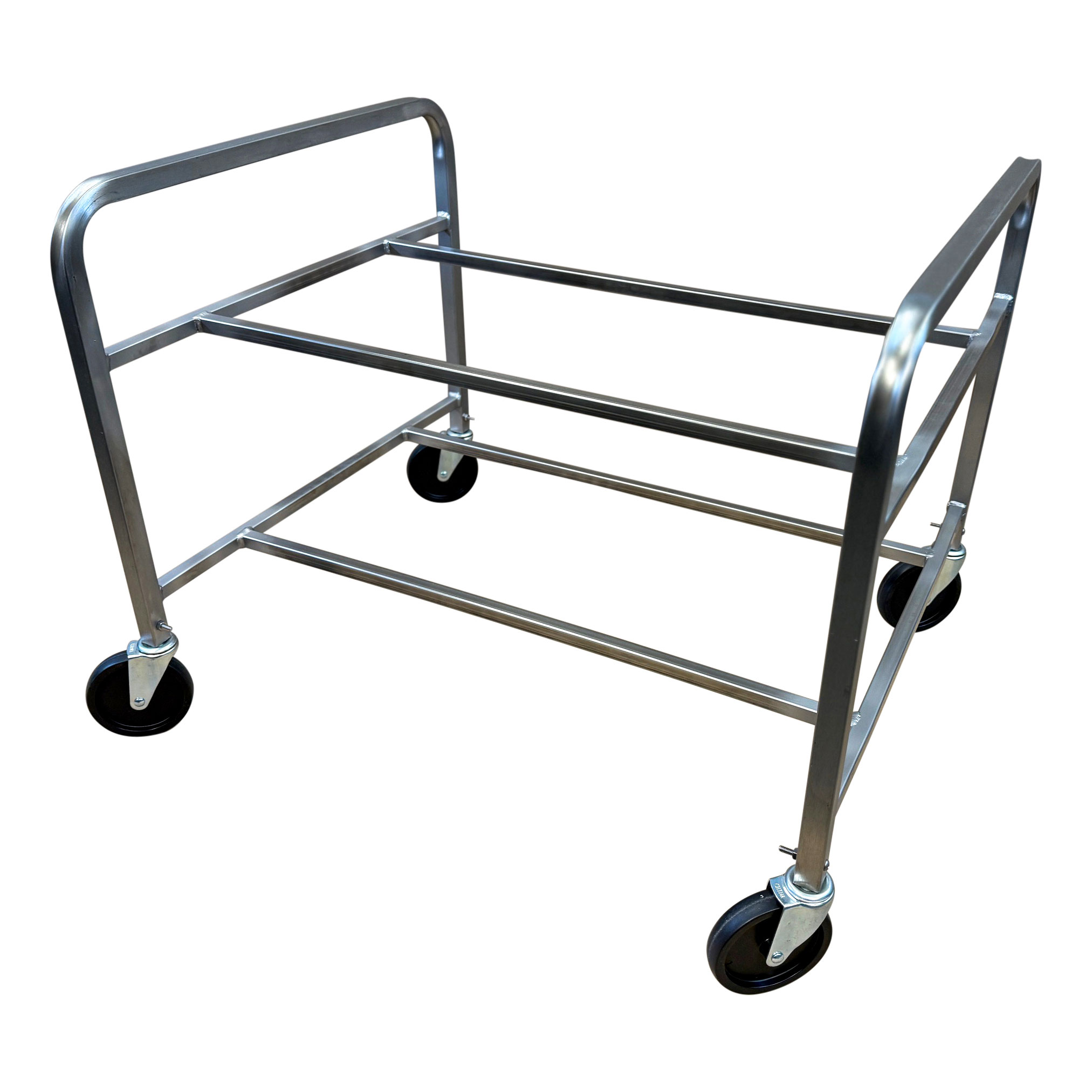

DL102040	4	Aluminum, FW	34″ x 28″ x 27-1/2″	17 lbs
DL102041	4	Aluminum, KD	34″ x 28″ x 27-1/2″	17 lbs
DL101035	4	Stainless, FW	34″ x 28″ x 27-1/2″	26 lbs
DL101033	4	Stainless, KD	34″ x 28″ x 27-1/2″	28 lbs

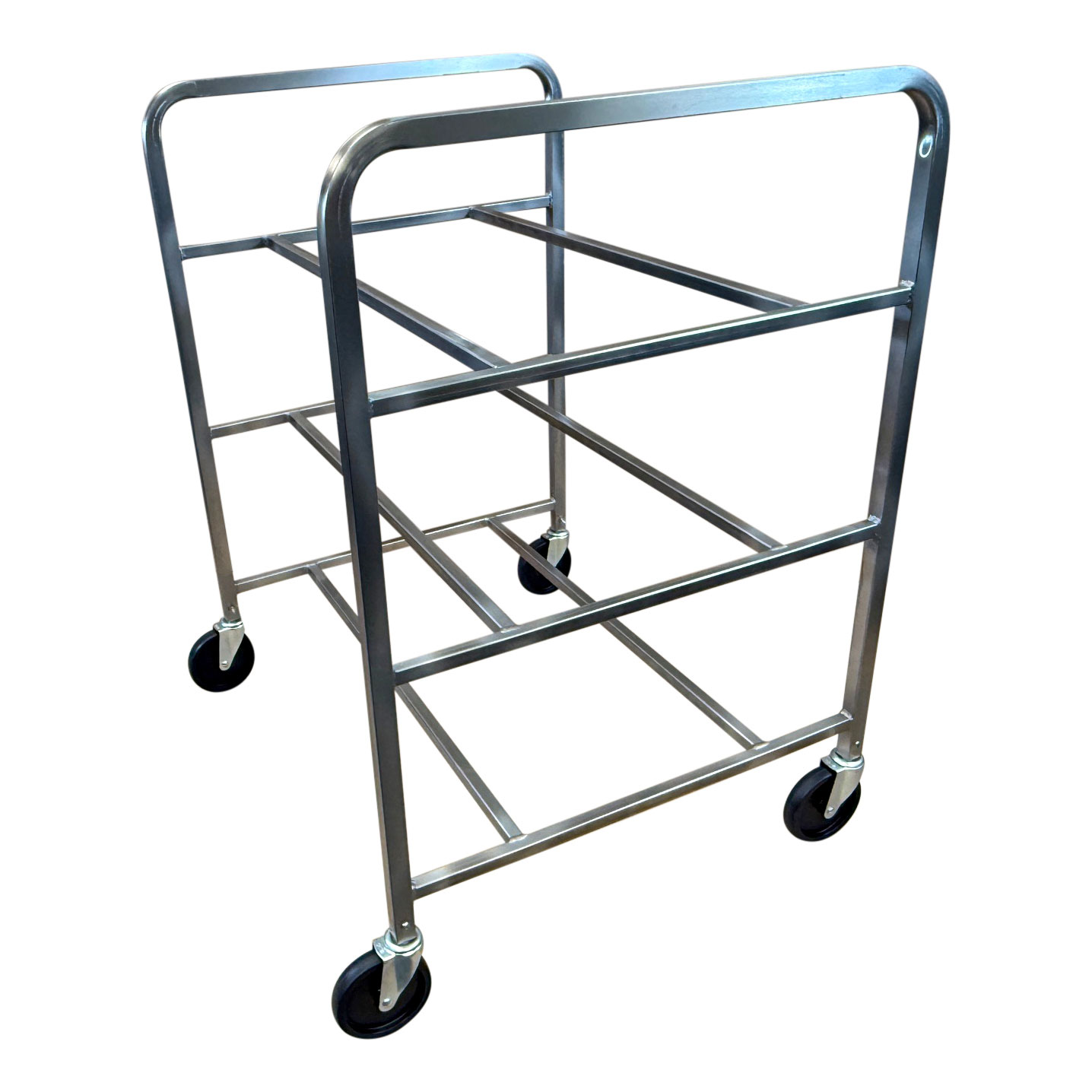

DL102014	6	Aluminum, KD	34″ x 28″ x 39-1/2″	22 lbs
DL101010	6	Stainless, KD	34″ x 28″ x 39-1/2″	35 lbs
WC203005	Caster	Replacement	5″ Without Brake	2 LBS
WC203006	Caster	Replacement	5″ With Brake	2 LBS
