Side by Side Tote Dollies
Made with the same heavy duty construction as our regular Tote Dollies, these Side by Side units have a wide stance and low center of gravity making them extremely stable.
All Knock-Down and 2 Tote models ship UPS.
Aluminum models are available in both Knock-Down and Fully Welded.
All Tote Dollies are design to accommodate 16″ x 25″ x 8-1/2″ Totes. (Tote Not Included)
Dollies are equipped with 5″ swivel casters. (2 with brake and 2 without brake)
Knock-Down Models come with tool needed for assembly.
Options: FW = Fully Welded KD = Knock-Down
For Custom Made Sizes
| Tote Capacity | Material and Configuration | Overall Dimension Length X Width x Height | Approximate Shpg. Wt. | Model No. |
|---|---|---|---|---|

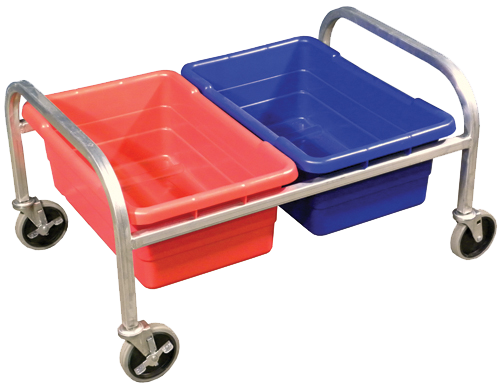

| 2 | Aluminum, FW | 34″ x 24″ x 20″ | 14 lbs | DL102042 |
| 2 | Stainless, FW | 34″ x 24″ x 20″ | 17 lbs | DL101034 |
| 4 | Aluminum, FW | 34″ x 28″ x 27-1/2″ | 17 lbs | DL102040 |
| 4 | Aluminum, KD | 34″ x 28″ x 27-1/2″ | 17 lbs | DL102041 |
| 4 | Stainless, FW | 34″ x 28″ x 27-1/2″ | 26 lbs | DL101035 |
| 4 | Stainless, KD | 34″ x 28″ x 27-1/2″ | 28 lbs | DL101033 |

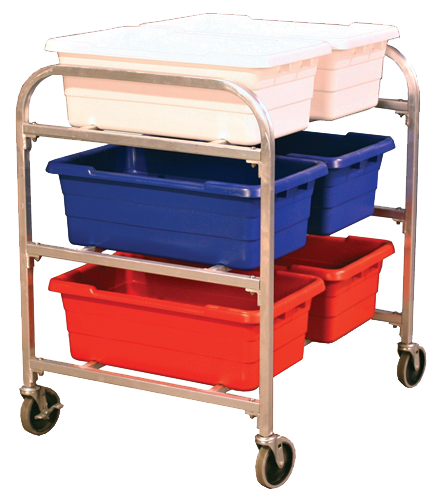

| 6 | Aluminum, KD | 34″ x 28″ x 39-1/2″ | 22 lbs | DL102014 |
| 6 | Stainless, KD | 34″ x 28″ x 39-1/2″ | 35 lbs | DL101010 |
| Caster | Replacement | 5″ Without Brake | 2 LBS | WC203005 |
| Caster | Replacement | 5″ With Brake | 2 LBS | WC203006 |
