TKS05001 – 500 Lb Standard Truck
TKS05003 – 500 Lb Raised Truck
Products

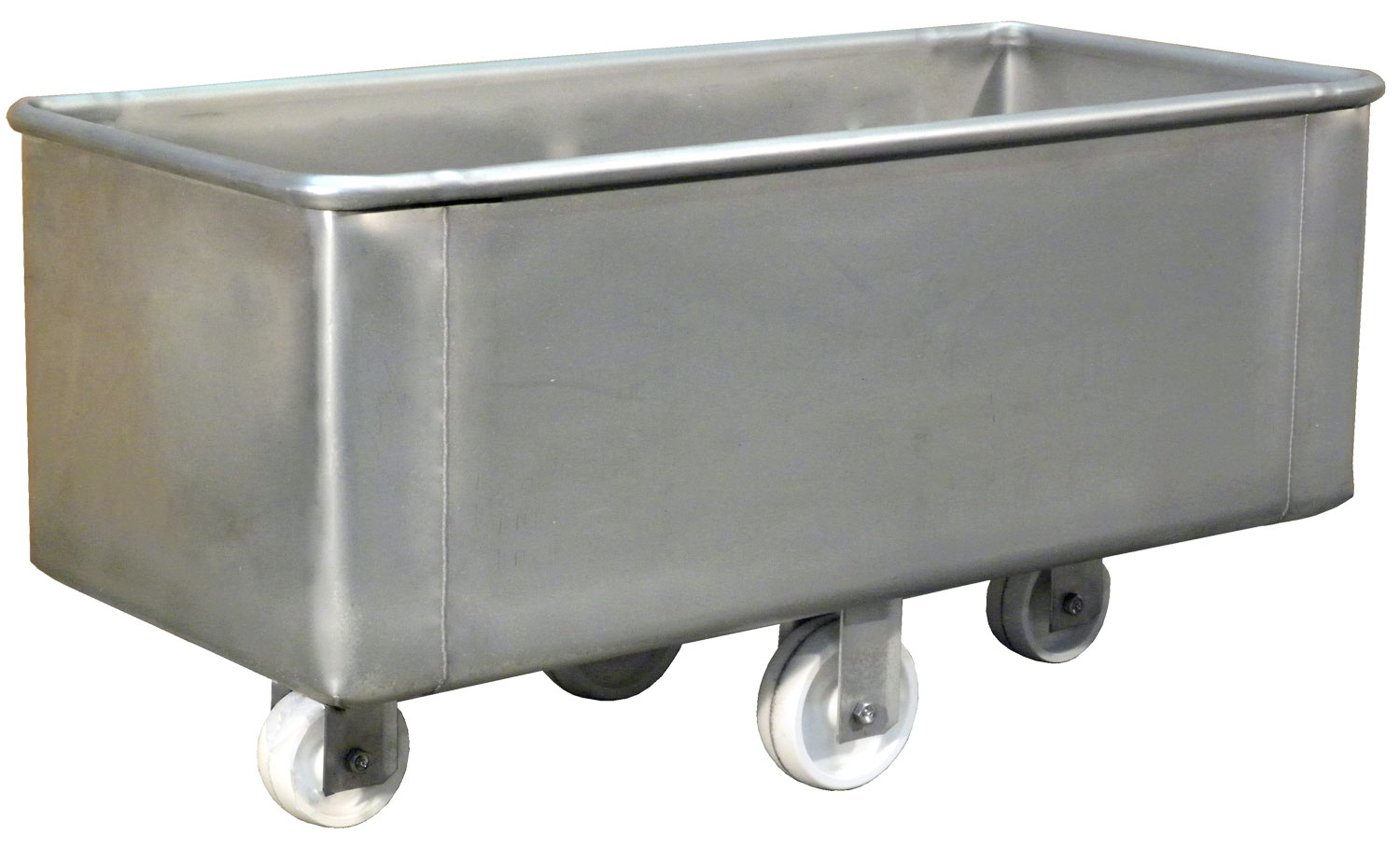

500-Lb Stainless Steel Truck
Like our larger trucks we’ve manufactured these 500-LB Trucks with 14 gauge T-304 Stainless Steel and added solid rod reinforcement in the top ends and corners for added strength. Interior welds are Tig welded and glass bead blasted smooth. The exterior is Mig welded for added strength. All Sanitary corners have a smooth 1″ radius for easy cleaning.
Options
- Drain & Cap
For Custom Made Sizes
| Part Number | Overall Dimension Width x Length X Depth x O.A.H. | Features | Load Capacity | Approximate Shpg. Wt. |
|---|---|---|---|---|
| TKS05001 | 21-1/2″ x 44″ x 16″ x 22-1/2″ | – | 500-lbs | 80 lbs |

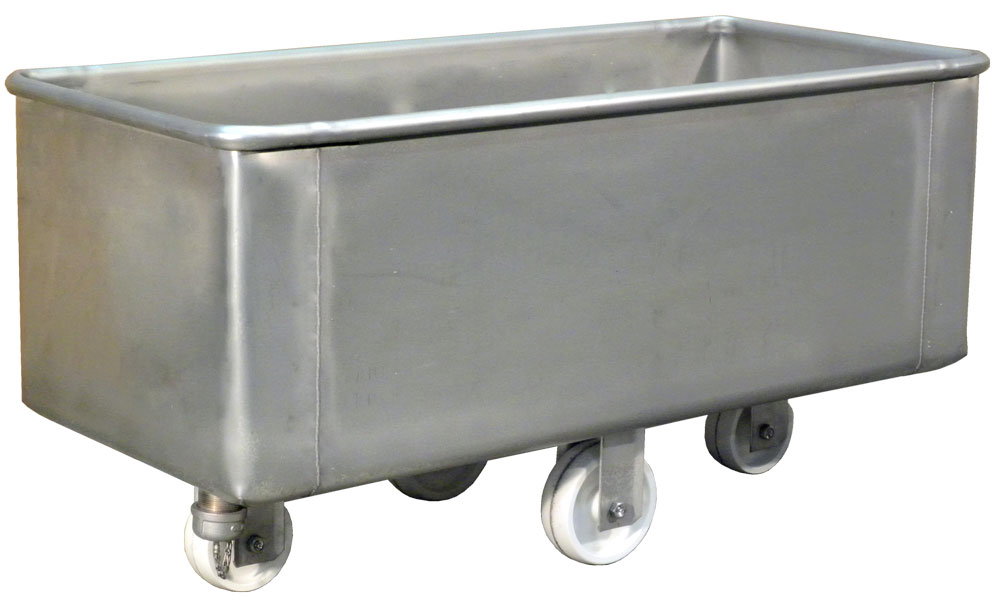

| TKS05002 | 21-1/2″ x 44″ x 16″ x 22-1/2″ | Drain & Cap | 500-lbs | 80 lbs |
| WC1PW003 | 5″ x 2″ end wheel | – | – | 2 lbs |

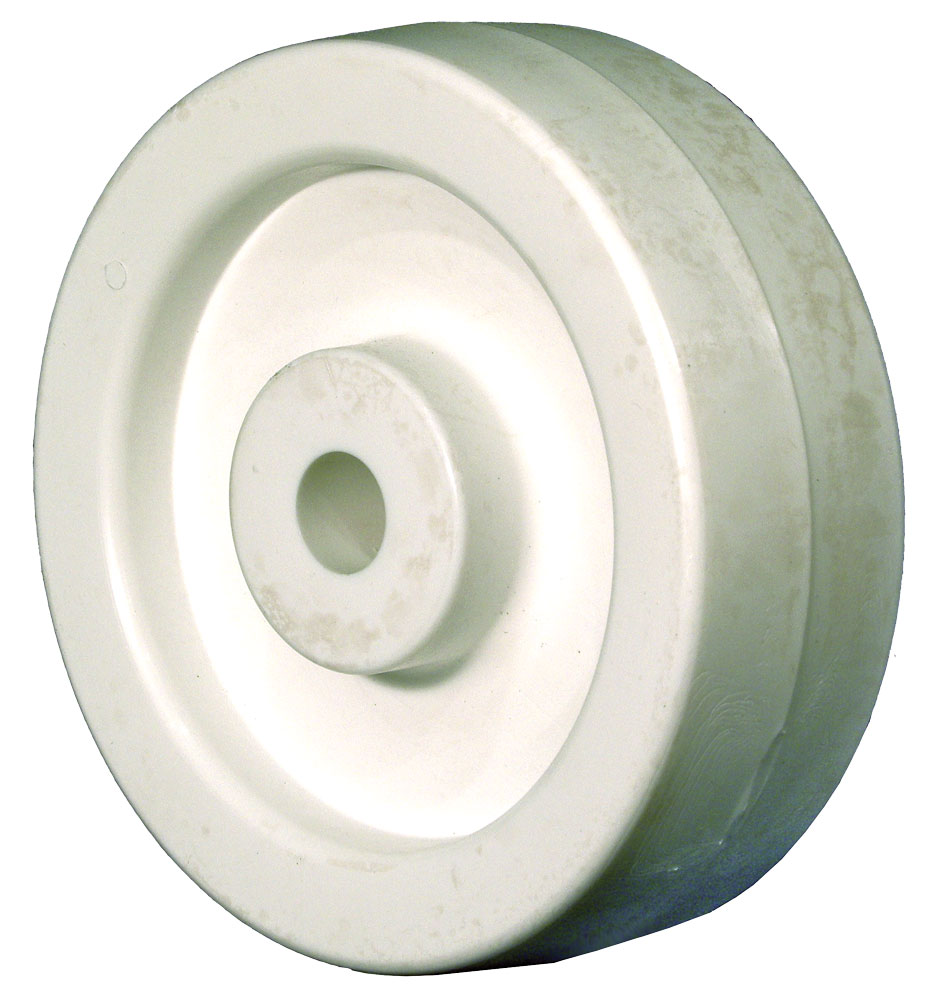

| WC1PW001 | 6″ x 2″ Center Wheel | – | – | 2 lbs |
| WC301003 | REPL. Axle assembly, 1/2” x 3”, SS | w/zerk fitting | & delrin Bushing | |
| TKS05003 | 21-1/2″ x 44″ x 16″ x 32″ | drain & Cap | 500-lbs | 99 lbs |

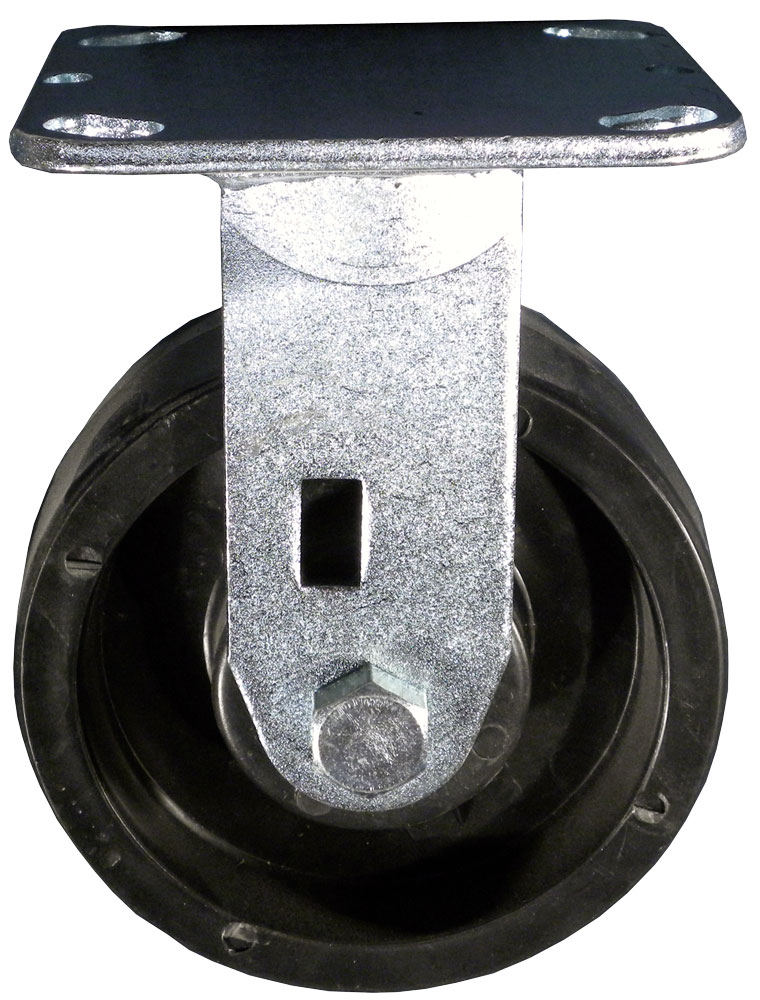

| WC202005 | 5″ x 2″ Rigid Caster | – | – | 6 lbs |

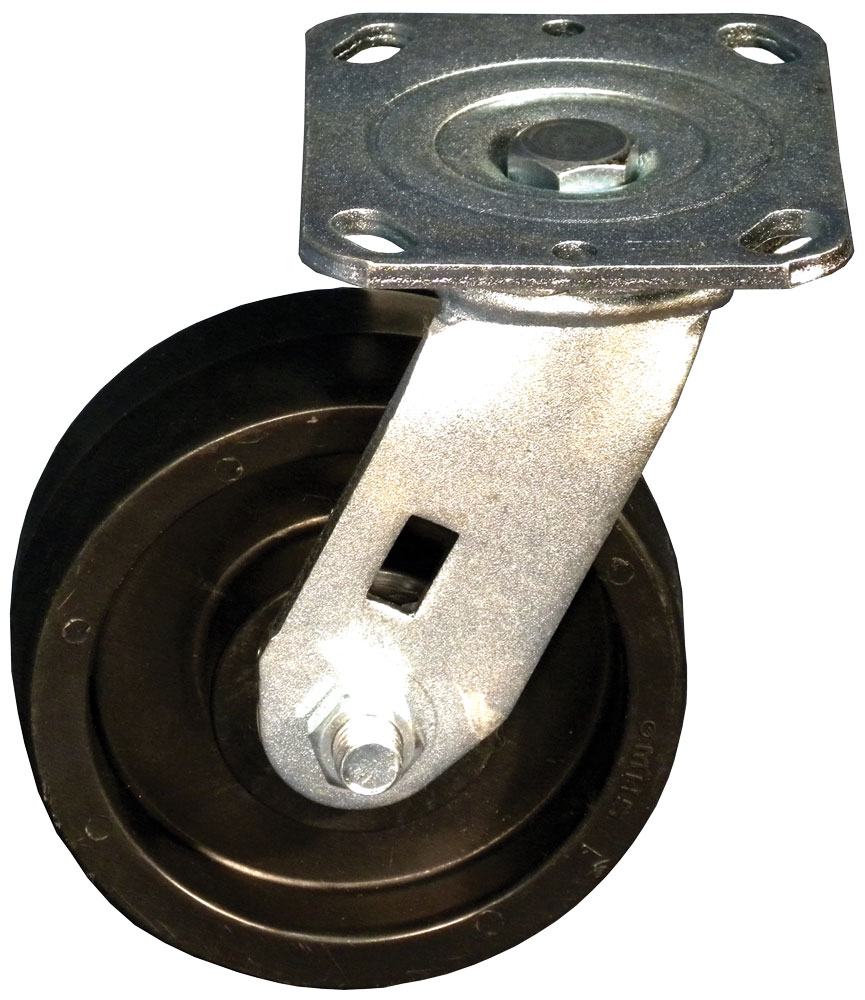

| WC201003 | 5″ x 2″ swivel caster | – | – | 6 lbs |
