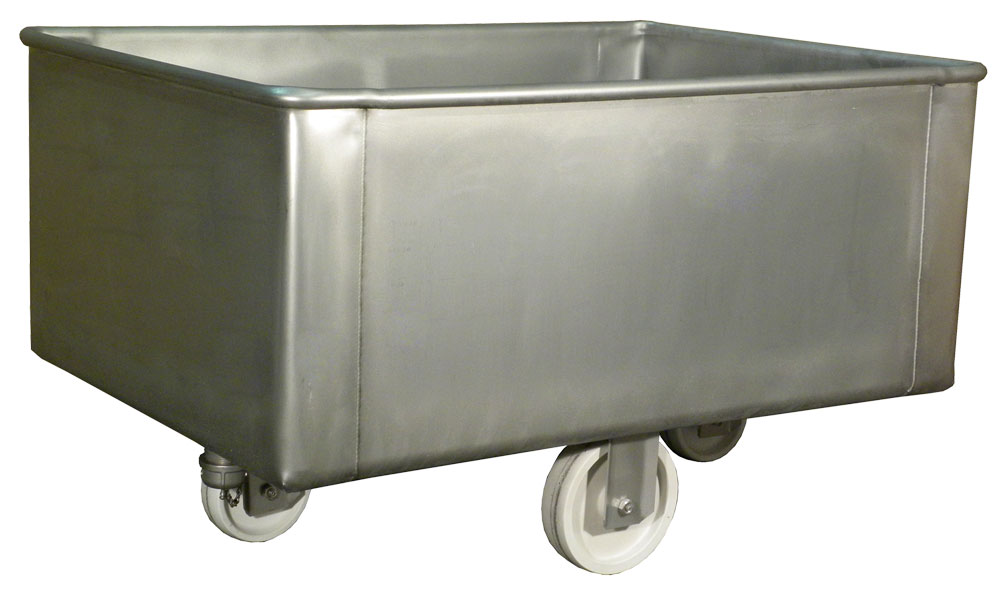

TKS08002 – Standard Style

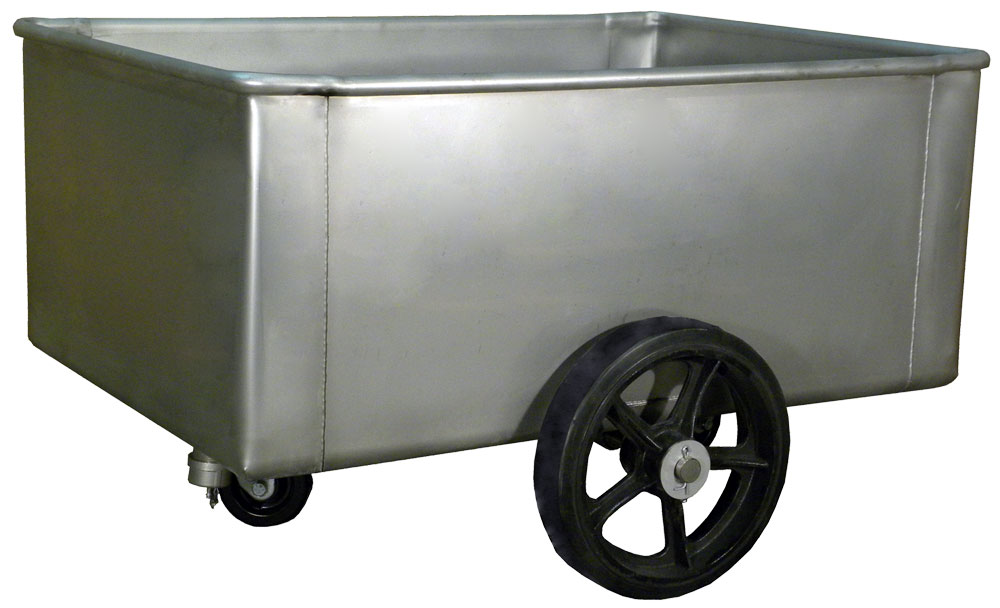

TKS08004 – Center Load Style
TKS08008 – Raised Style
Products
800-Lb Stainless Steel Truck
Constructed from sturdy 14 gauge T-304 Stainless Steel these Trucks have an optional 1-1/2″ NPT threaded drain and cap. We’ve added solid rod reinforcement in the top ends and corners for added strength. Interior welds are Tig welded and glass bead blasted smooth. The exterior is Mig welded for added strength. All Sanitary corners have a smooth 1″ radius for easy cleaning.
Options
- Drain & Cap
For Custom Made Sizes
| Part Number | Overall Dimension Width x Length X Depth x O.A.H. | Features | Load Capacity | Approximate Shpg. Wt. |
|---|---|---|---|---|
| TKS08001 | 31″ x 46″ x 19″ x 27-1/2″ | – | 800-lbs | 80 lbs |
| TKS08002 | 31″ x 46″ x 19″ x 27-1/2″ | Drain & Cap | 800-lbs | 80 lbs |

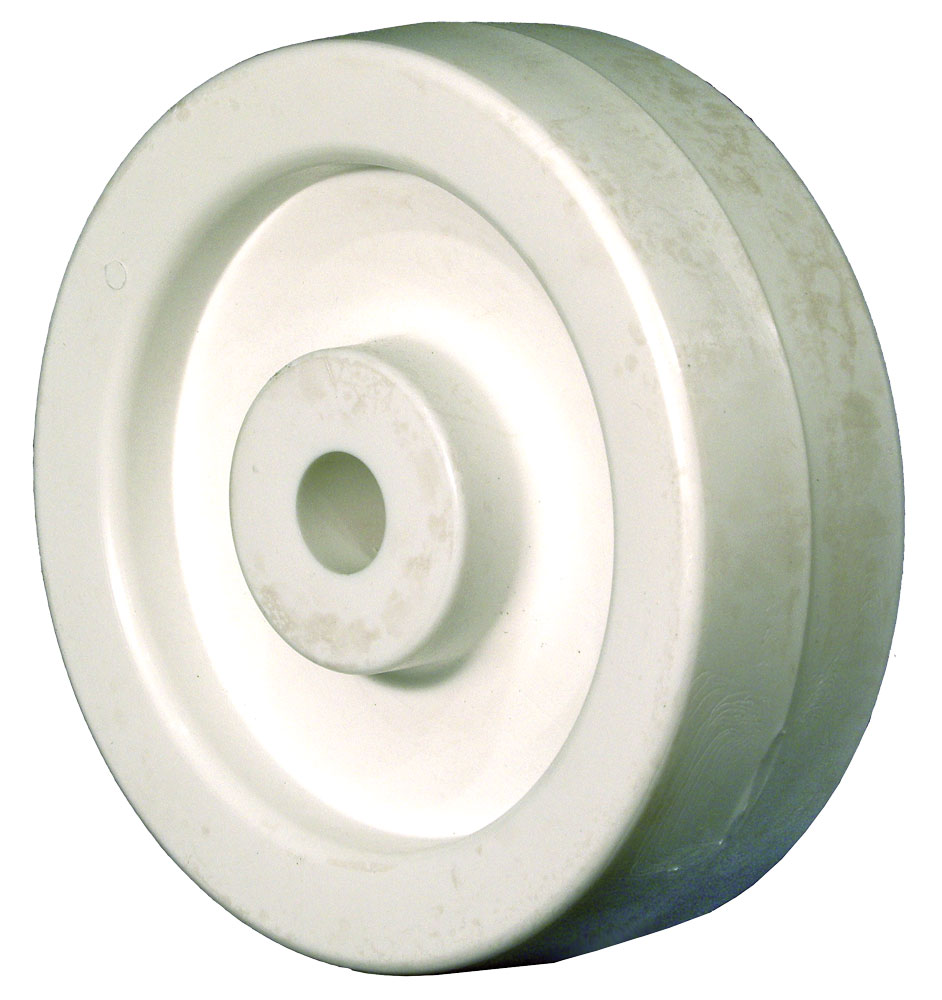

| WC1PW001 | 6″ x 2″ end wheel | – | – | 2 lbs |

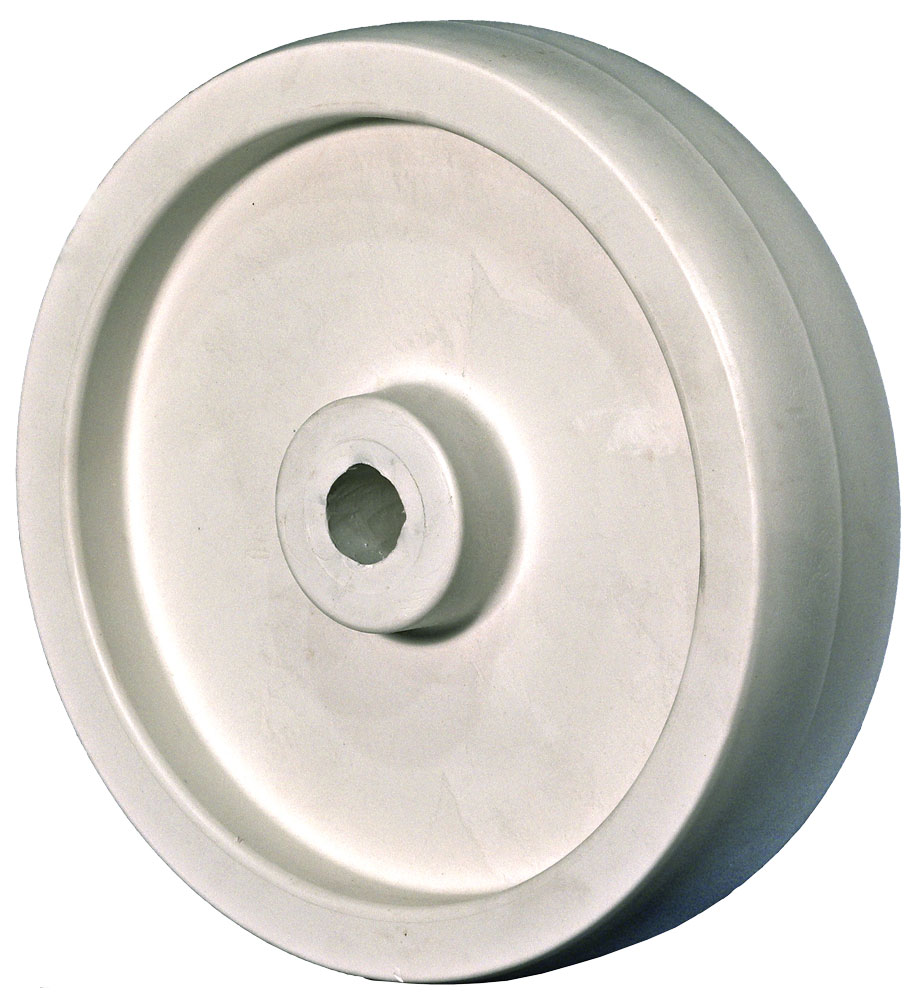

| WC1PW002 | 8″ x 2″ Center Wheel | – | – | 2 lbs |

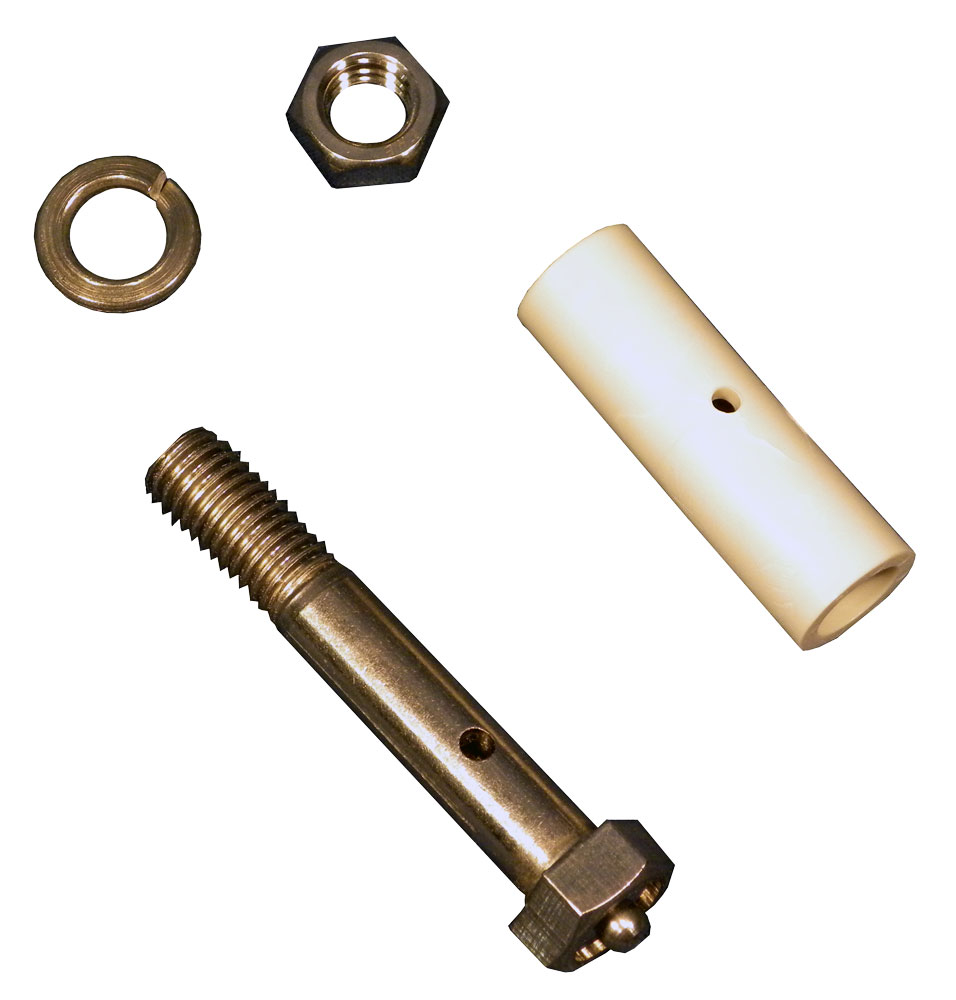

| WC301003 | Repl. Axle assembly, 1/2” x 3”, SS | w/zerk fitting | & delrin Bushing | |
| TKS08003 | 31″ x 46″ x 19″ x 26-1/2″ | – | 800-lbs | 168 lbs |
| TKS08004 | 31″ x 46″ x 19″ x 26-1/2″ | drain & Cap | 800-lbs | 168 lbs |
| WC1MT001 | 14″ x 2.5″ Center Wheel | mold-on rubber | – | 25 lbs |

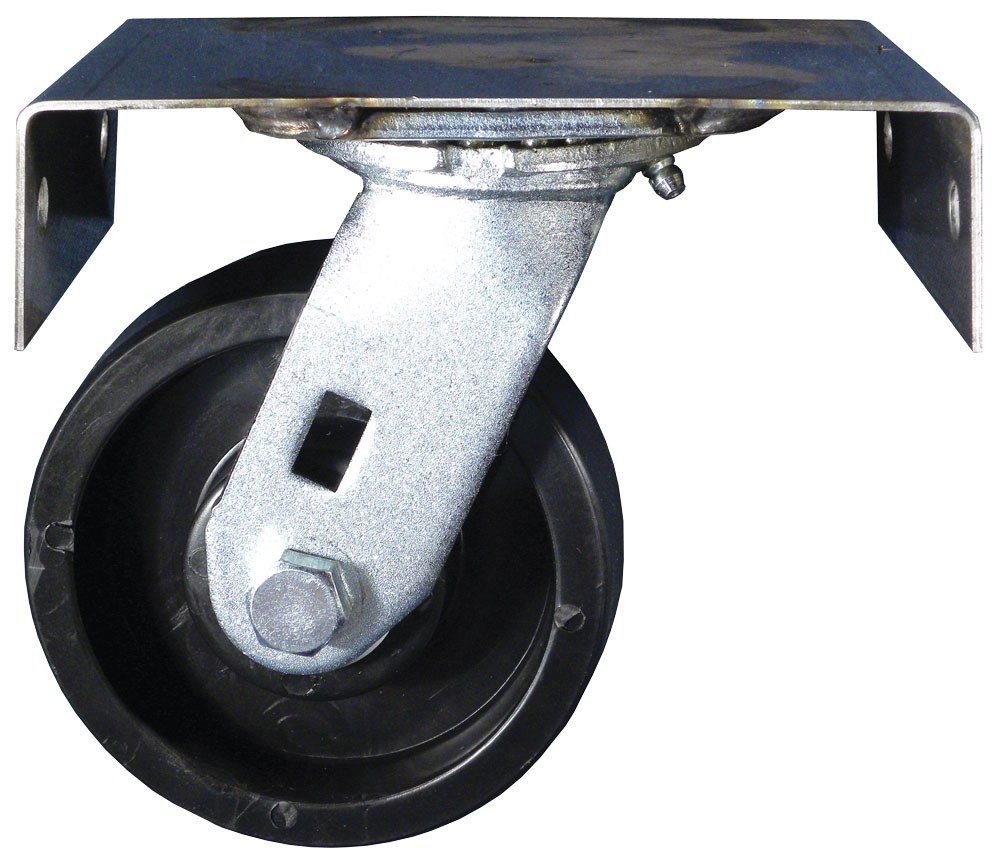

| WC201001 | 5″ x 2″ Swivel Caster | – | – | 7 lbs |
| TKS08008 | 43” x 30” x 19” | 5” x 2” black Poly wheel casters | 800-Lbs |
